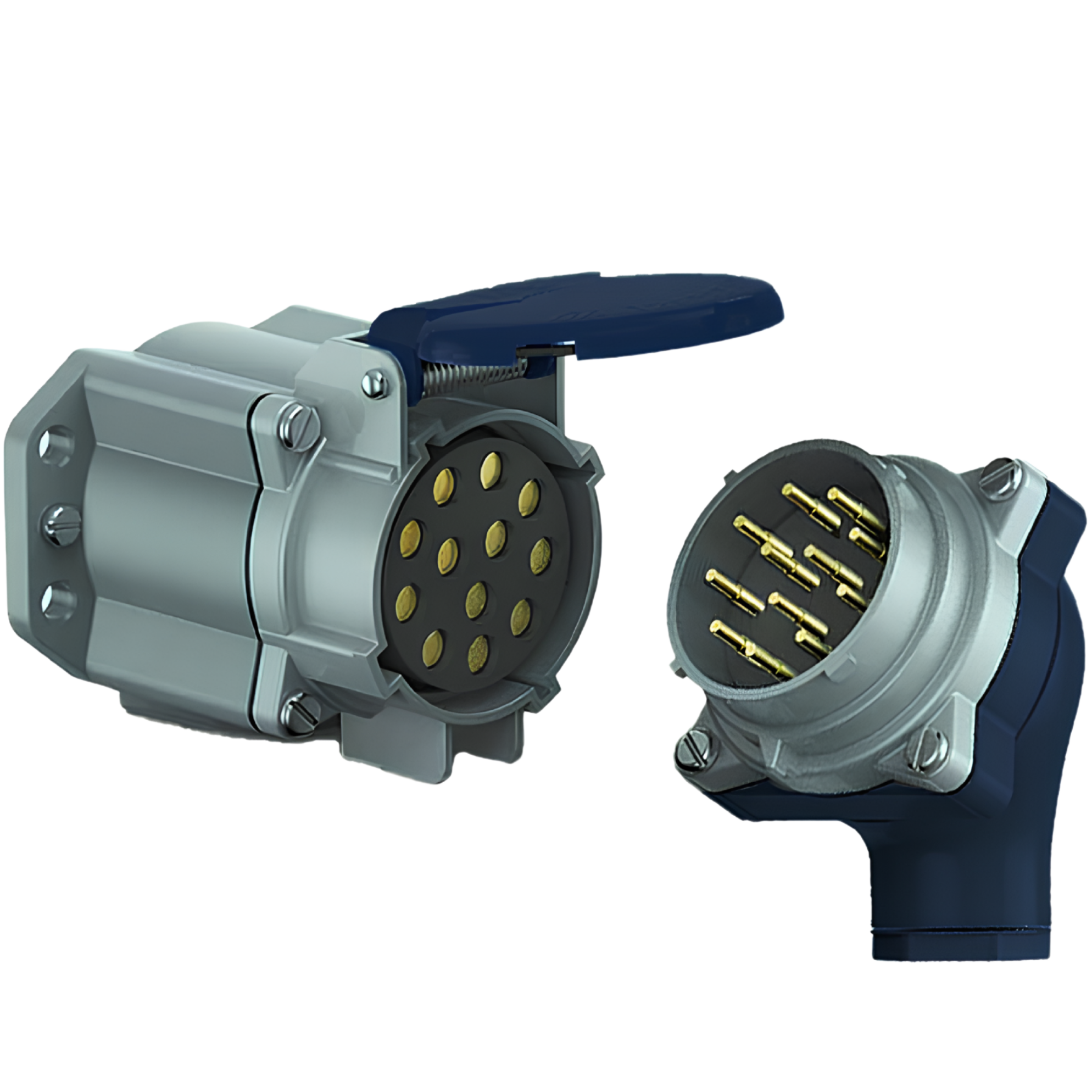

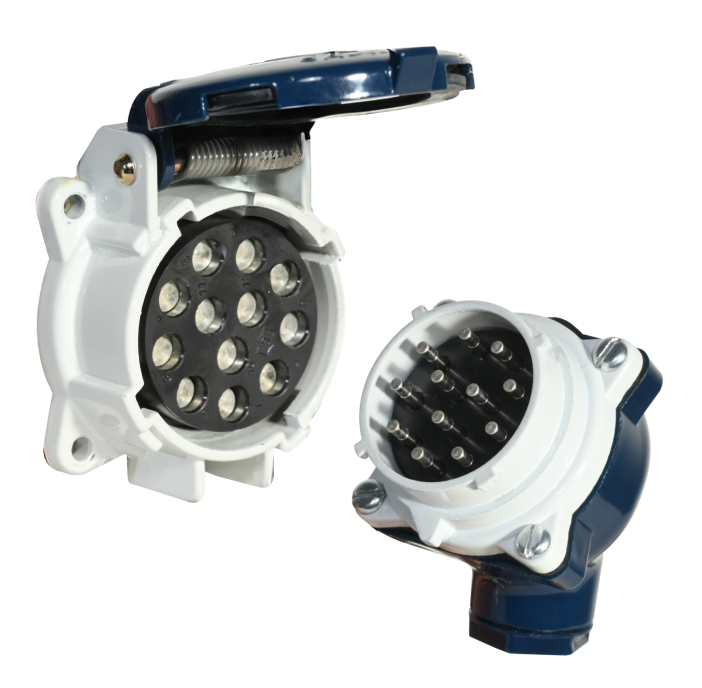

12A - 12 Pin Plug Socket Industrial Plugs And Sockets, 415V

IP RatingIP 44
Current Rating12A - 12 Pin Plug Socket
Interlock FacilityYes
BrandCOMET
Pin Type12 Pin
Minimum Order Quantity10
Rated Voltage500V AC/DC
Thermal Current (LTH)12A (Copper Cable) | 8A (AI. Cable)
Contact Resistance< 1 Milliohm (mΩ)
Contact Pressure1 Kg (Min) | 1.15 (Max)
Mechanical & Electrical Life15,000 Operations
TerminationsSolder Loaded
Feature image
  • The product has been thoroughly tested and approved by:
    • Electrical Research and Development Association (ERDA), Baroda as per IEC-309-1:1988.
    • Government of Gujarat, L.D. College of Engineering (Department of Electrical Engineering), Ahmedabad as per IS-4160:1967.
  • Plugs and sockets are designed to overcome shortcomings of conventional plugs and sockets.
  • Features silver-tipped, spring-loaded, self-wiping, butt-type contacts.
  • Ensures low contact resistance, minimizing temperature rise.
  • Spring-loaded terminals can hold copper and aluminium conductors under pressure.
  • No loose contacts or connections due to vibrations or continuous heating.
  • All metal parts are earth-connected.
  • Negligible voltage drop when operated at rated current.
  • Non-deteriorating contact-carrying surface.
  • Silver contacts ensure reliability and durability against temperature rise.
  • Easy interchangeability of interiors allows multiple arrangements for 1-phase and 3-phase power supply.
  • Robust construction using non-ignitable, water-resistant, and non-corrosive materials.

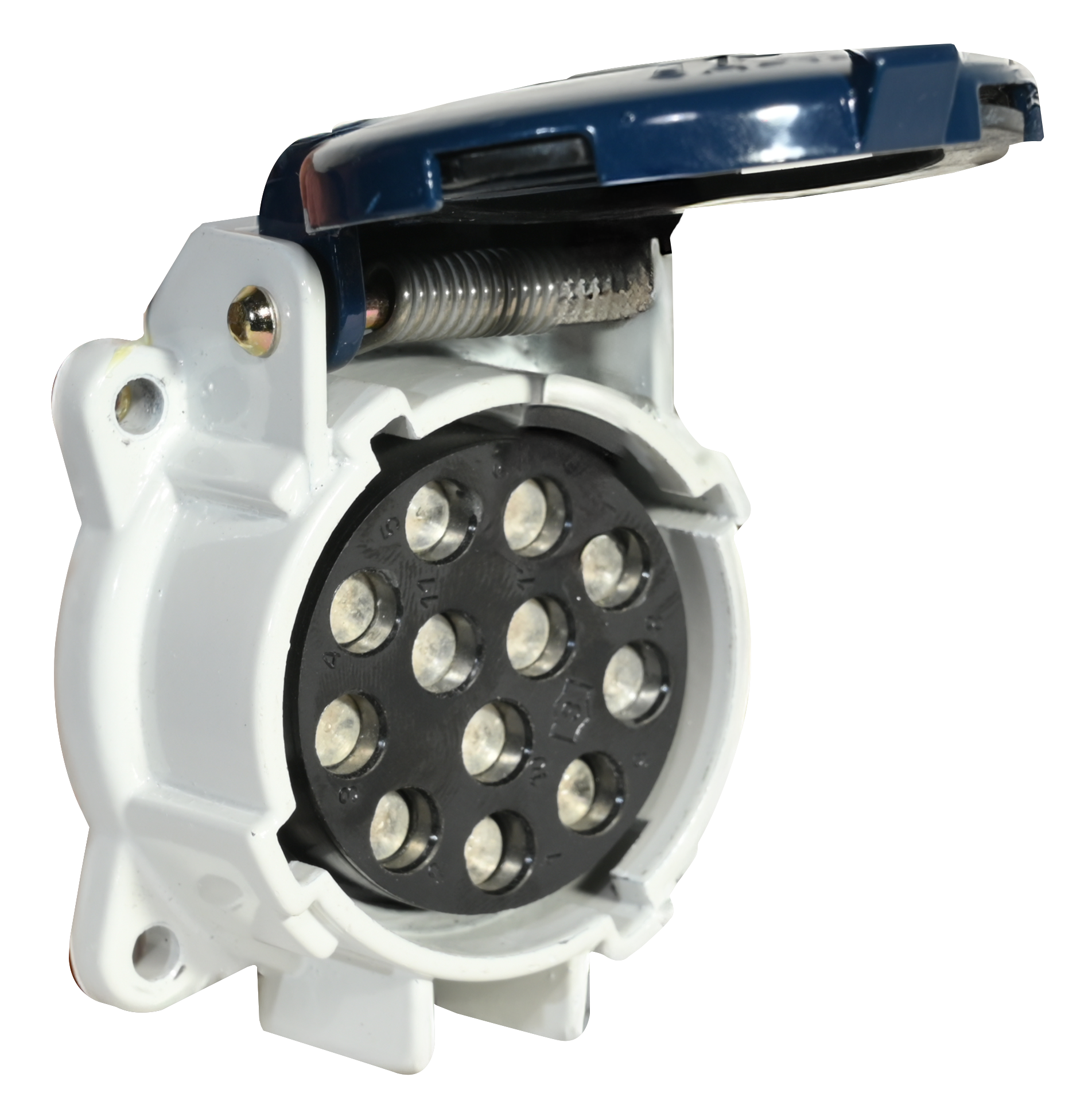

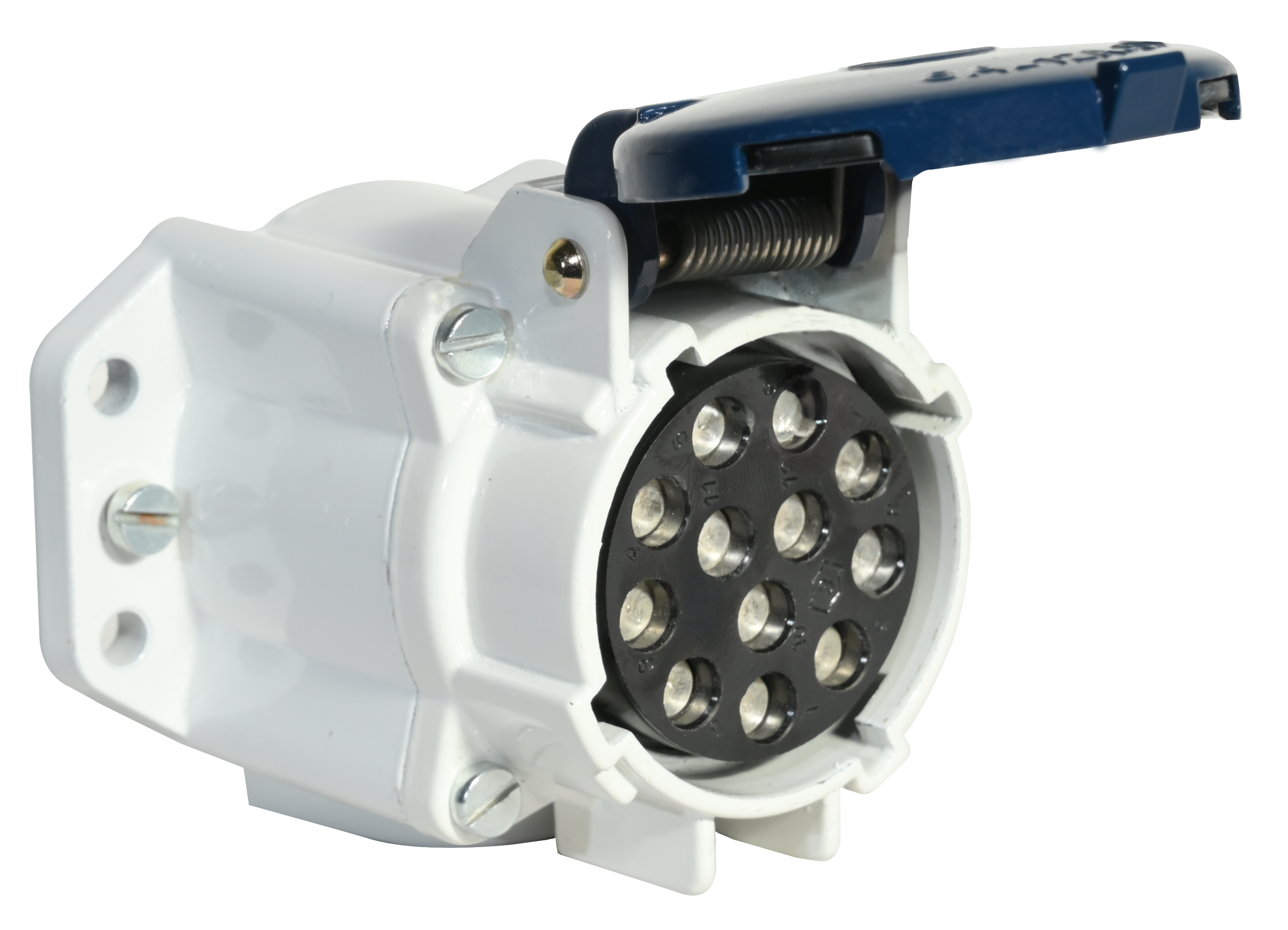

  • The socket includes a strong spring-closed gasketed cover, suitable for outdoor use.
  • The plug cannot be pulled out of the socket by its cable or fall out due to positive bayonet-type fitting.
  • Socket can be mounted on a conduit box.
  • Butt-type contacts have pressure parallel to the insertion and removal forces.
  • Contact pressure springs assist in plug removal from the socket.
  • Clearances and creepage of live contacts exceed 3 mm.
  • Screws in metal or insulation can be repeatedly tightened and loosened without damaging threads.
  • Sockets are available for both panel mounting and wall mounting.

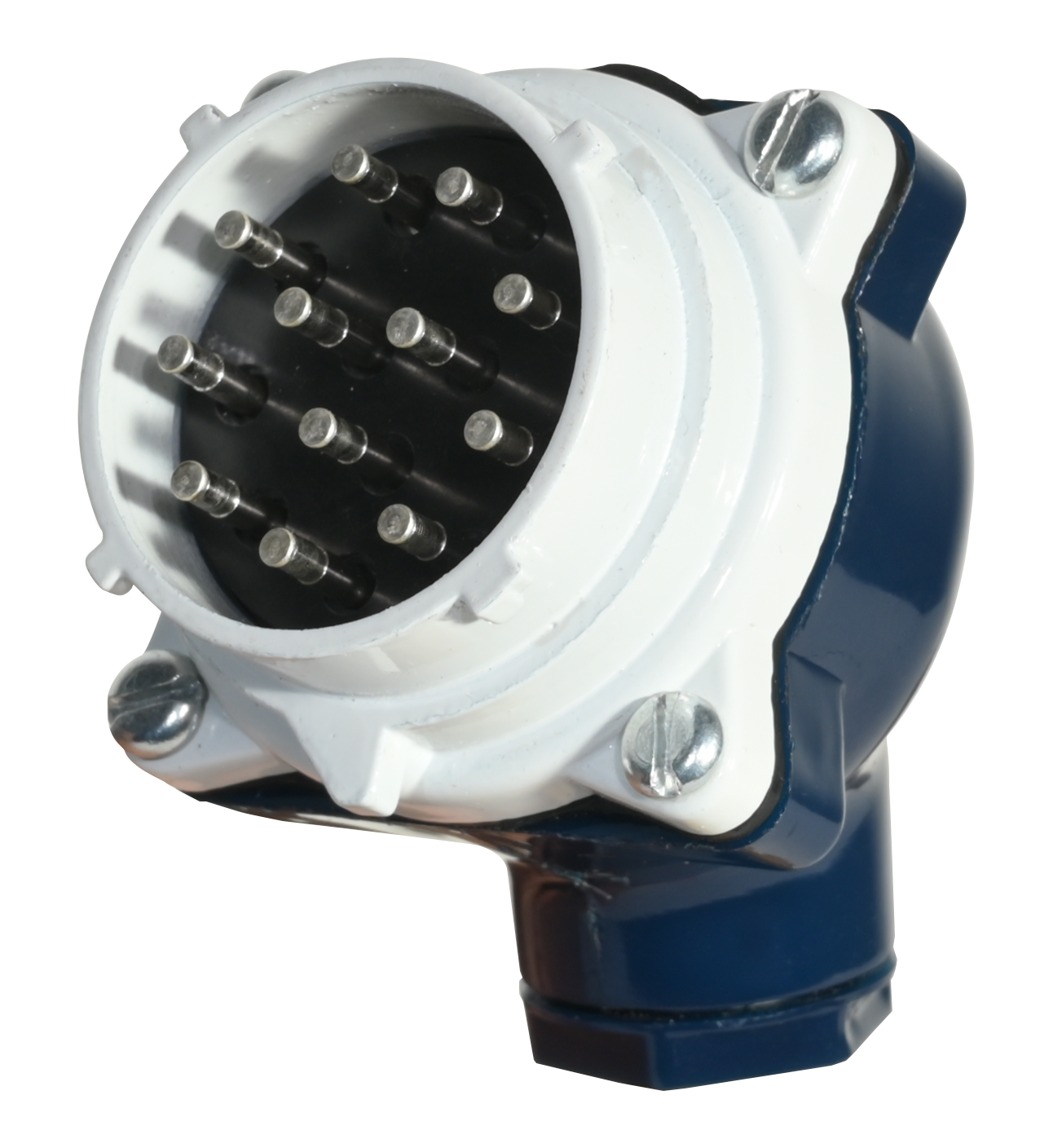

  • Plugs are available with both inclined and straight handles.
  • All mechanical parts are tested and approved by ERDA Baroda and Government of Gujarat, Ahmedabad.
  • Plugs and sockets are suitable for use on power circuits.
